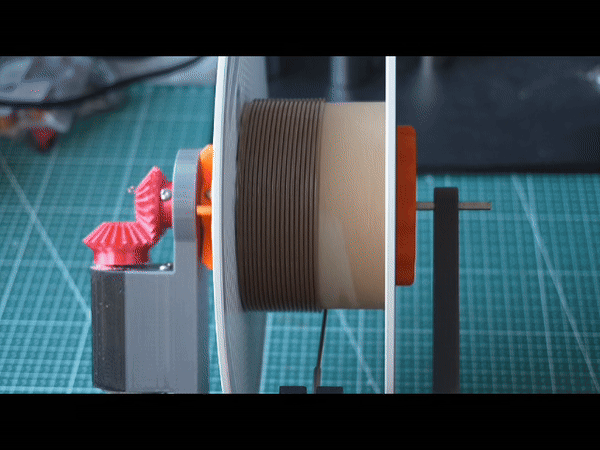

A very simple DIY coil winder can be made with a basic motor, a speed controller, and a manual counter. That may be enough for rough spool winding. But once you care about a target such as 200 turns, 800 turns, or several identical coils, time-based motor control becomes too limited.
The core of a useful winding machine is not just rotation. It is controlled rotation. An encoder motor, or another form of rotation feedback, helps the controller understand how much the shaft has actually moved instead of only guessing from motor run time.
This guide explains why encoder feedback matters in a DIY coil winder, and how to test turn counting before using the machine for real coils. If you already have a 3D printer and want to reduce the time spent sourcing motors, controller parts, wiring, and small hardware, see the Winding Machine V2 DIY Coil Winder Hardware Kit. The printable model, build details, and community feedback are available on the MakerWorld model page.
Why Turn Counting Is Harder Than It Looks
In theory, one shaft rotation should add one turn to the coil. In practice, several things can create error:
- The motor may slow down when the load changes.
- The bobbin or workpiece may slip on the shaft.
- The machine may overshoot when stopping.
- Manual counters are easy to misread during long or fast jobs.
- Fine wire often requires low speed and controlled stopping.
For a rough spool transfer, a small error may not matter. For a coil, electromagnet, sensor coil, or repeatable prototype, turn count can directly affect the result. A DIY coil winder should therefore be judged by repeatability, not only by maximum speed.
What Encoder Feedback Adds
An encoder converts rotation into a signal that the controller can read. The exact implementation can vary: it may be part of the motor, mounted on the shaft, or added as a separate sensing mechanism. The practical benefit is the same: the controller receives feedback from the moving system.
In a coil winding machine, this feedback can support:
- Turn counting: the controller can count measured rotation instead of only estimating from time.
- Target stopping: the machine can stop based on a target turn count.
- Repeatable winding: the same job can be run again with less manual counting.
- Low-speed control: slow winding is easier when the controller can still confirm movement.
- Troubleshooting: feedback makes it easier to separate electrical, motor, and mechanical problems.
Encoder Motor vs Stepper Motor
Encoder motors and stepper motors are often compared, but they are not solving exactly the same problem. A stepper motor is useful when you want commanded movement by steps, such as moving a wire guide left and right. Encoder feedback is useful when you want to confirm rotation and count how much movement has actually happened.
| Approach | Strength | Weak point | Good use in a coil winder |
|---|---|---|---|
| Simple DC motor | Low cost and simple speed control | No direct position feedback unless extra sensing is added | Basic spool winding where exact turns are not critical |
| Stepper motor | Predictable movement by commanded steps | Can lose position if overloaded or poorly tuned | Wire guide travel, lead screw movement, and controlled positioning |
| Encoder motor | Rotation feedback for counting and verification | Requires controller support and correct wiring | Bobbin rotation, turn-based winding, and repeatable coil jobs |
A practical winding machine may use more than one motor type because the winding shaft and the wire guide do different jobs. The shaft needs reliable turn feedback and controlled stopping. The guide axis needs smooth travel and repeatable boundary control.
Encoder Feedback Does Not Fix Weak Mechanics
An encoder can tell the controller how much the motor or detected shaft has rotated. It cannot fix a loose bobbin, a slipping coupling, or a weak printed bracket. If the motor turns correctly but the bobbin slips, the displayed count may look right while the real coil is wrong.
Before trusting any turn count, check the mechanical path:
- The bobbin or workpiece should be clamped securely to the winding shaft.
- The winding shaft should rotate without obvious wobble.
- The wire should enter the bobbin at a consistent angle.
- The wire guide should move smoothly from side to side.
- The limit switches should trigger consistently at the same positions.
If the mechanics are unstable, the machine may count correctly but still produce loose, uneven, or stacked winding. In a DIY coil winder, the electronics and the mechanical build have to be checked together.
How to Test Turn Counting
Do not start with a real coil. First, mark the bobbin or shaft with a visible reference line. Set a small target such as 10 turns and run the machine at low speed. When the machine stops, check whether the mark returns close to its starting position.
Repeat the 10-turn test several times. Then test larger targets such as 50 and 100 turns. The point is not to prove that the motor can rotate once. The point is to see whether the machine behaves consistently across repeated jobs.
If the machine overshoots at higher speed, reduce the speed before using fine wire. A coil winder that stops accurately at moderate speed is more useful than one that spins quickly but overshoots every job.
Who Actually Needs Encoder Feedback?
If your only task is to transfer wire from one spool to another and exact turns do not matter, encoder feedback may not be necessary. It becomes much more useful when you need to:
- Wind coils to a defined number of turns.
- Make several similar prototypes.
- Stop automatically near the target turn count.
- Record settings and repeat a job later.
- Work with fine wire where manual observation is not enough.
For these jobs, the value of the machine is not that it can spin. The value is that it turns a winding task into a process that can be set, tested, and repeated.
What to Look For in a DIY Coil Winder Project
When choosing a DIY coil winder project, do not judge it only by appearance or speed. Look for how the machine counts turns, how the wire guide moves, how the limit switches are mounted, and whether other builders have completed the project successfully.
This is why community proof matters. A product page can explain what a hardware kit includes, while a model page with makes and reviews helps you judge whether the printed parts and build process are realistic.
If you already have 3D printing and assembly experience, start by reviewing the Winding Machine V2 model on MakerWorld. If the project fits your workshop, the Winding Machine V2 hardware kit can reduce the time needed to source and match the motor, controller, wiring, and small parts.
