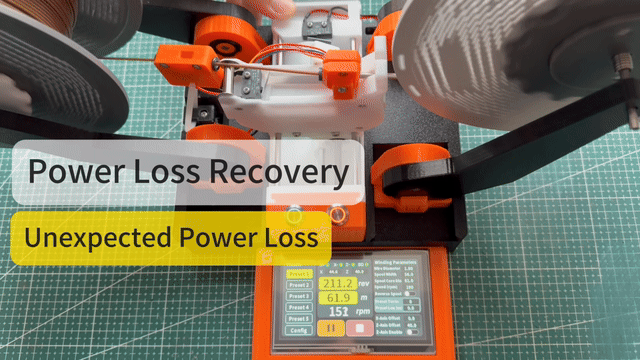

Build your own Winding Machine V2: a DIY coil winder / wire winding machine hardware kit for makers with a 3D printer. This is not a complete machine. 3D printed parts are required and must be printed by the buyer.
This kit includes the hardware components needed to assemble Winding Machine V2, including screws, motors, a control board, wiring, and other electronics.
- Hardware included: screws, motors, control board, wiring, and assembly accessories
- 3D printed parts required; printed parts are not included
- Step-by-step assembly videos provided
- Designed for DIY makers who want to build their own coil winder or wire winding machine
Please make sure you have access to a 3D printer before purchasing.
Main Components Included

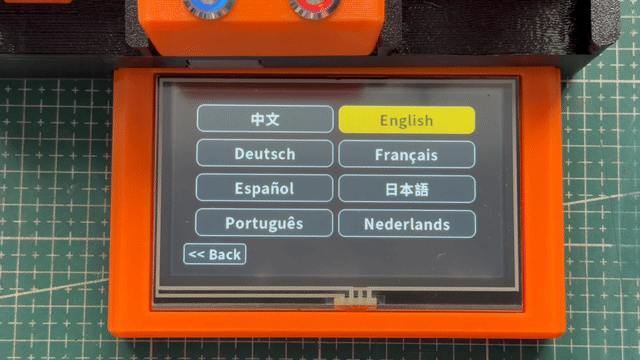

- 4.3" touch screen
- Main control board
- 2 × encoder motors
- 1 × stepper motor
- 1 × power adapter
- 5 × limit switches
- 1 × lead screw
- A total of 41 different components included（共计41类配件）
3D Print Files
Download the 3D printed model files on MakerWorld:
FAQ
Is this a complete coil winding machine?
No. This is the hardware kit for building Winding Machine V2. The 3D printed structural parts are not included.
Do I need a 3D printer?
Yes. You need to print the required parts yourself before assembly.
What is included in the hardware kit?
The kit includes motors, the control board, wiring, screws, limit switches, a power adapter, and other assembly accessories.
Where can I download the 3D model files?
The model files are available from the MakerWorld link above.
Who is this kit for?
This kit is for DIY makers, 3D printer users, and builders who want a programmable coil winder / wire winding machine project.
