People often search for a coil winding machine as if all winding jobs are the same. They are not. Some jobs care most about turn count. Some care about wire length. Some care about resistance. Others are simply about moving wire from one spool to another in a neat and controlled way.
If you do not define the target first, the setup can become confusing. You may need an exact number of turns but only run the motor by time. Or you may need a fixed length of wire but only count how many times the spool rotates. Both methods involve winding, but their sources of error are different.
This guide compares winding by turns and winding by length for small DIY winding machines, including 3D printed builds. If you want to evaluate the WonderMaker build, see the Winding Machine V2 DIY Coil Winder Hardware Kit. The printable model and community feedback are available on the MakerWorld model page.
The Short Answer
Use winding by turns when the electrical or magnetic behavior of the coil depends on how many turns are wound. Use winding by length when the job is mainly about transferring, preparing, or measuring a known amount of wire.
| Method | Best for | Machine requirement | Main risk |
|---|---|---|---|
| By turns | Coils, electromagnets, inductors, repeatable prototypes | Reliable turn counting and target stopping | The count can look correct while the real coil is wrong if the bobbin slips |
| By length | Wire transfer, sample preparation, inventory, spool rewinding | Direct length measurement or carefully calibrated length estimation | Changing spool diameter can create length error |
| By resistance | Some resistance wire, heater wire, and experimental samples | Resistance measurement outside the winding axis | Temperature, wire tolerance, and contact method can affect readings |
What Is Winding by Turns?
Winding by turns means the machine stops after a target number of rotations around the bobbin. For example, if the target is 500 turns, the machine stops after 500 effective turns. This is a common method for coils because turn count can directly affect inductance, magnetic strength, output behavior, or experimental repeatability.
Turn-based winding works best when:
- You need multiple coils with the same turn count.
- The coil specification is defined by turns.
- You want to record settings and repeat the same job later.
- The bobbin or workpiece can be clamped firmly to the winding shaft.
- The machine has reliable turn sensing or rotation feedback.
The main weakness is mechanical slip. If the controller counts motor rotation but the bobbin slips on the shaft, the displayed count may be correct while the real coil receives fewer turns. Turn-based winding needs both reliable counting and solid mechanical clamping.
What Is Winding by Length?
Winding by length means the goal is a certain amount of wire, such as 10 meters, 50 meters, or a known amount needed for another process. This is useful for wire preparation, rewinding, and spool management. It is not always the same as making a functional coil.
There are two common ways to approach length-based winding. One is direct measurement, such as a measuring wheel or another path-based length sensor. The other is estimation based on spool diameter and rotation. The second method is simpler but much easier to get wrong.
The problem is that spool diameter changes as wire builds up. At the beginning, one rotation represents a shorter length of wire. As the spool gets larger, one rotation represents more wire. If you calculate length only from the starting circumference, the error grows as the spool fills.
Why Turns and Length Are Not Interchangeable
It is tempting to convert turns into length by using circumference. For a single layer on a fixed diameter, that can be close enough. Real coils usually build layers, and each new layer increases the effective diameter.
Wire diameter, tension, guide pitch, layer stacking, and edge behavior all affect the final result. If your job requires precise wire length, counting turns alone may not be enough. If your job requires exact turn count, measuring length alone may not produce the same coil behavior.

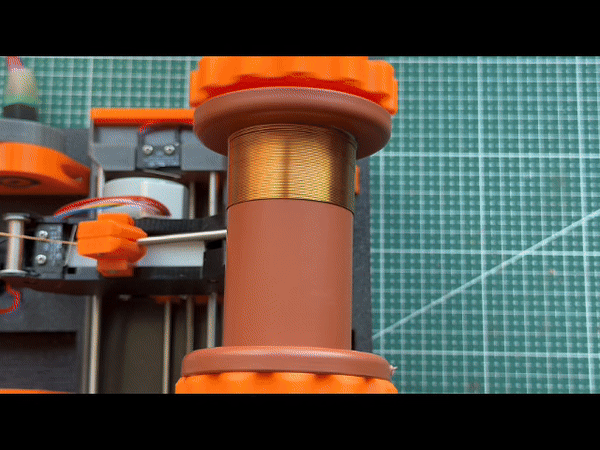

The Wire Guide Matters in Both Methods
Whether you wind by turns or by length, the wire guide controls where the wire lands. Many simple winding setups only spin a shaft while the user moves the wire by hand. That can work for rough tasks, but it is hard to repeat.
A more useful DIY winding machine should control the wire guide across the usable width. Important factors include:
- The usable winding width of the bobbin or workpiece.
- Whether the guide moves smoothly from side to side.
- Whether the guide reverses consistently at the edges.
- How guide speed relates to shaft speed.
- Whether wire stacks or jumps near the ends.
If the guide moves too slowly, wire piles up. If it moves too quickly, gaps appear. If the edge reversal is poor, the ends become messy. These problems affect appearance, tension, and repeatability.
How to Choose the Right Winding Method
Use this decision process:
- If the specification is written as a turn count, use turn-based winding.
- If the job requires a known wire length, measure or control length directly.
- If the target is resistance, measure resistance separately instead of relying only on turns or length.
- If you are making many similar coils, prioritize counting, stopping, and guide repeatability.
- If you are rewinding wire for storage, prioritize neat spool fill and stable tension.
Do not choose a machine only by speed. For many DIY winding jobs, stable and repeatable control is more valuable than maximum RPM.
What This Means for a DIY Coil Winder
A practical DIY coil winder should solve at least three problems: stable shaft rotation, controlled target behavior, and predictable wire guide movement. It does not need to be an industrial machine, but it should be more than a motor spinning a bobbin.
For users with a 3D printer, a printed machine has a clear advantage: mounts, covers, spool supports, and guide structures can be adapted to the project. The tradeoff is that the builder must print, assemble, and tune the machine carefully. Print quality, screw fit, bearing alignment, and limit switch mounting all affect the final result.
The Winding Machine V2 hardware kit is not a finished machine. It is intended to reduce the time spent matching motors, controller parts, wiring, and small hardware. The structural parts still need to be 3D printed, and the model details can be reviewed on MakerWorld.
Practical Recommendation
If you are not sure whether you need turn-based or length-based winding, work backward from your real acceptance test. Will you judge the result by turn count, length, resistance, or how neatly the spool is filled? Different acceptance criteria require different setup and testing methods.
For coil work, start by building a reliable turn-count test: low speed, short targets, repeated runs, and visual checking of stop position. For wire preparation or rewinding, focus first on length measurement and wire tension. Both use a wire guide, but they optimize for different outcomes.
Build Around the Real Winding Job
Do not ask only how fast a coil winder can spin. Decide what you need to control: turns, wire length, tension, guide position, or repeatability.
